CHAPTER 12 - Mount the Canard | |
Mounting the canard is pretty straight forward. Install alignment "Pins" in the doubler at FS28 and make sure that the canard is perpendicular to the centerline. Here I am building up one side - 1/4" to get the canard perfectly perpendicular. |
|

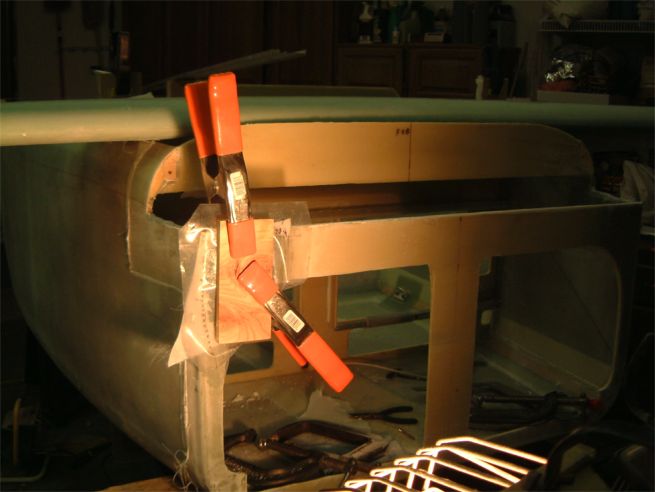

Then you build a couple of alignment tabs that will set on the alignment pins and hold the angle of the canard at the correct incidence. | |
