Chapter 9: Heat Shields

(posted 3/14/11)

Heat shields are not addressed in the plans.)

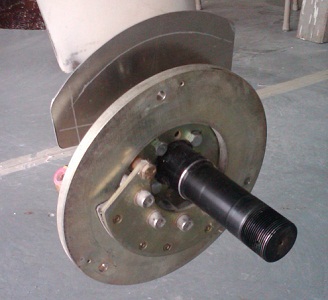

Heat shields protect the gear leg from being melted by the radiant heat from the brake rotor.  I made mine from 0.045" aluminum sheet bolted between the gear leg and axle.  I started  with the pattern created by Bernie Siu.  I modified mine to be a little wider so that they also shield the brake lines as they enter the brake calipers.  Later, I will wrap the gear leg and brake lines that are inside the wheelpant with fiberfrax and aluminum tape as an extra measure.
