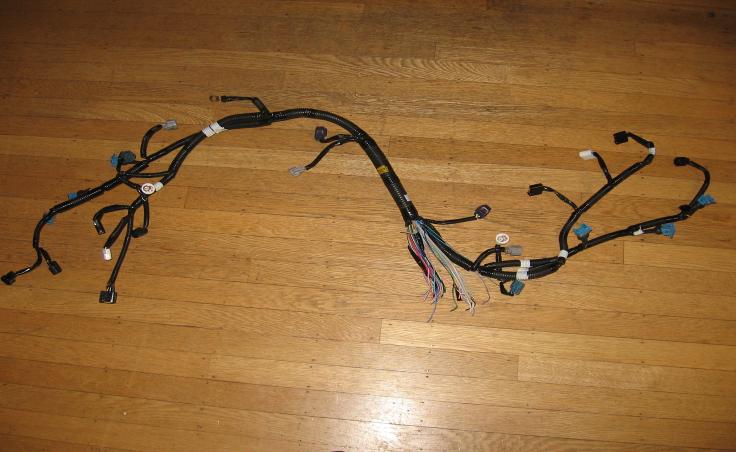

Mod wire harness

Soldered new injector connectors for the Siemens injector.

Removed this cluster of connectors.

These bare wires will be soldered to ECM wires. This reduces total number of connectors and increases reliability.

Engine wiring harness after mods.
