Structural Boot for Nose Lift

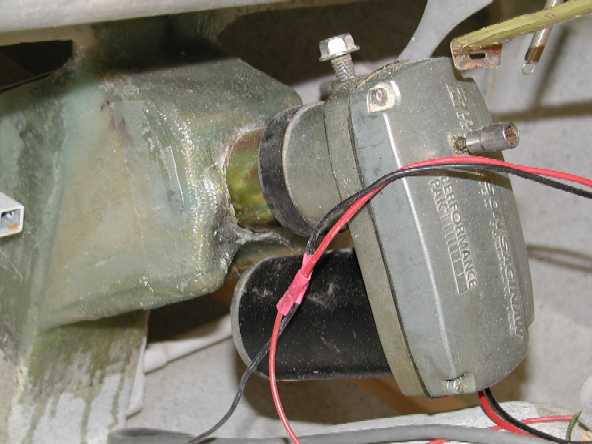

This is a structural boot to both strengthen the nose gear assemble connection and stop air infiltration. The motor and gear are not fully seated in this picture.  The pivot point is about 3/4 of a inch in front of the hole that the lift comes thru.  At this point there is very little movement.  I will chalk around the hole and lift. The pivot bolts are buried in flox.
